Atlas Gravity pH Sensor (Analog)

Resource	Contents
Purchase Link	Atlas Scientific storefront link, page also contains documentation links and specs
Datasheet	Documentation on operation, specs, and wiring diagrams

Wiring Diagram

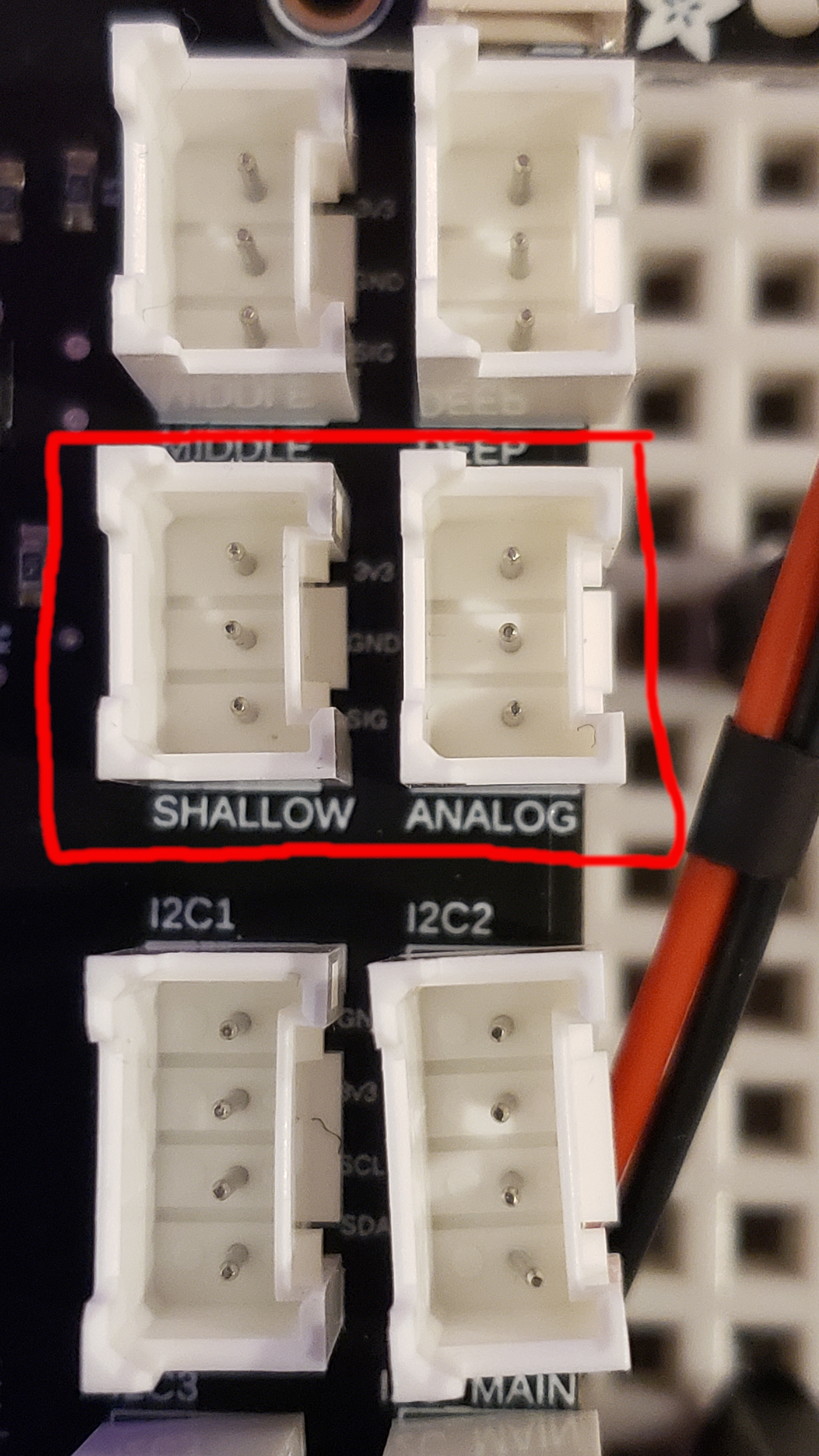

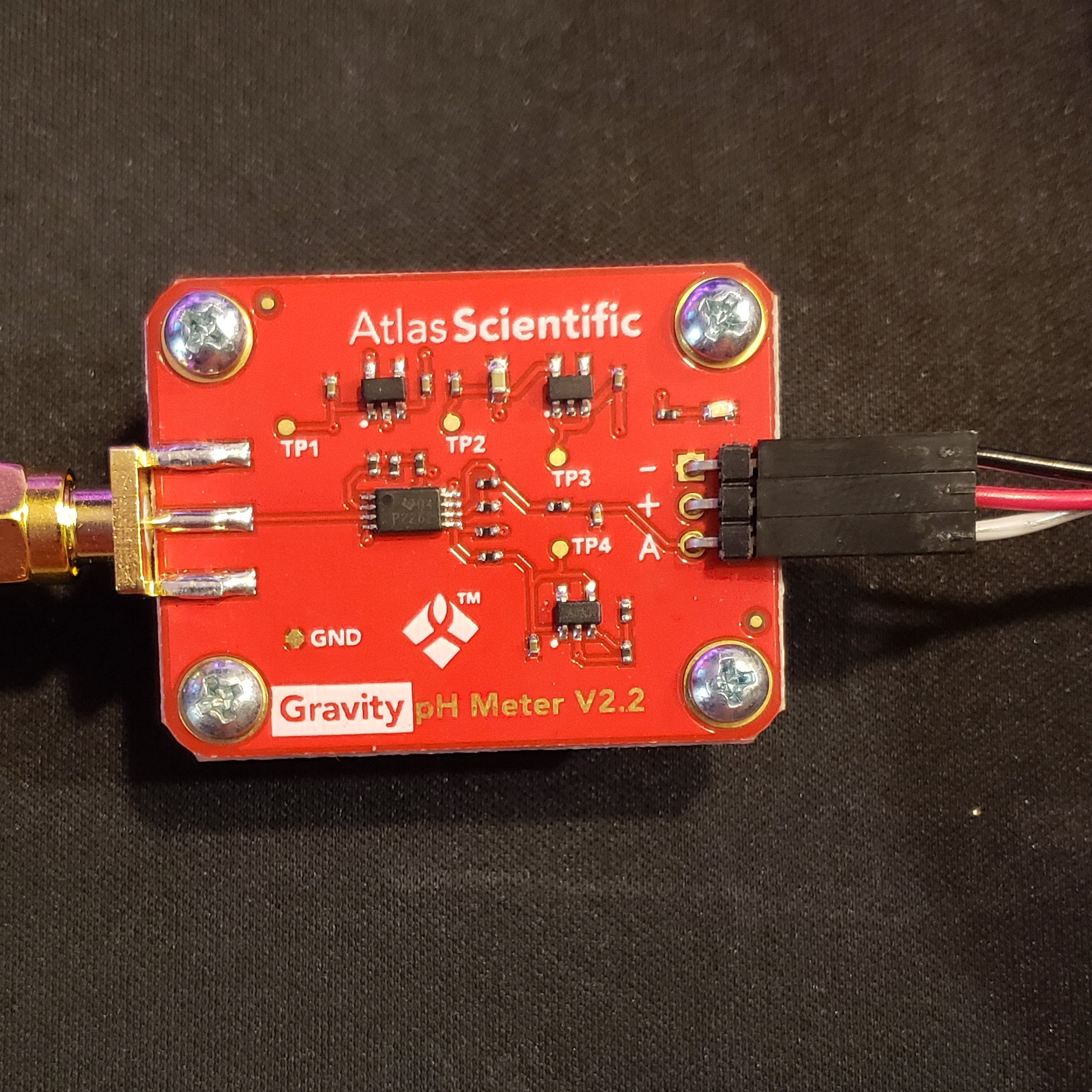

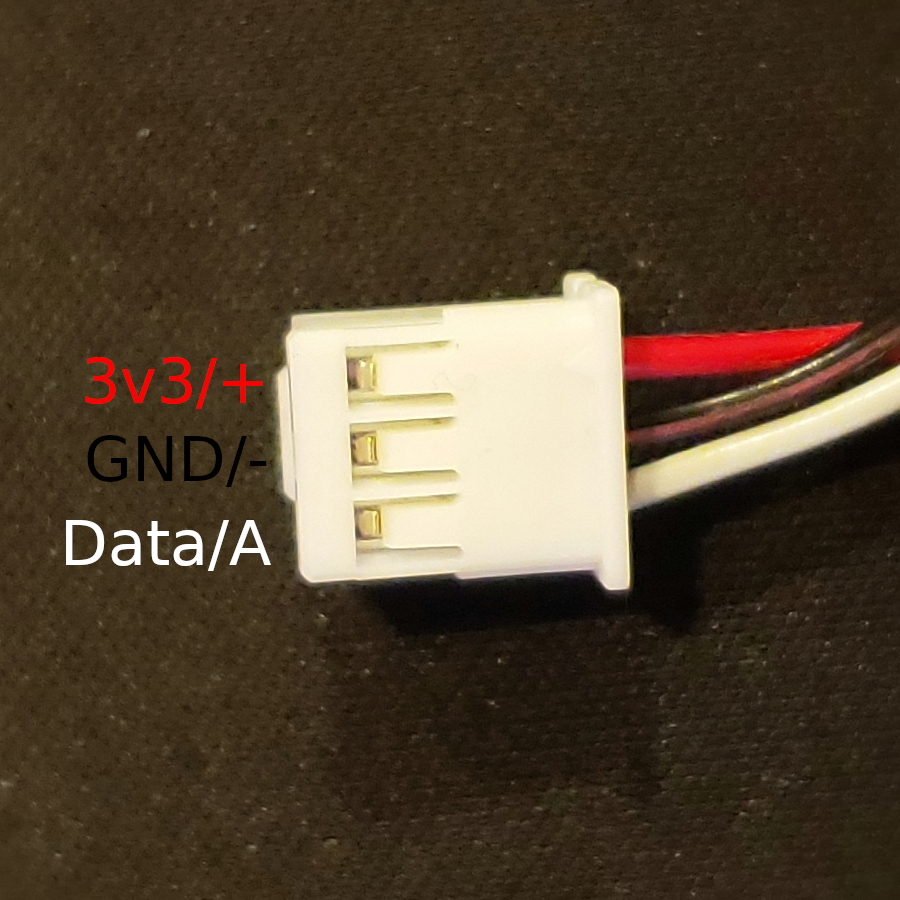

The pictures below show the wiring of the jumper wires between the sensor and the 3 pin connector which is used to connect to the analog ports on the aggregator board, hardware version 1.5 and later.

Connection Chart

| Gravity pH | Aggregator | | :—: | :—: | | - | GND | | + | 3v3 | | A | SIG |
