Meter Teros 10 VWC Sensor (Analog)

Resource	Contents
Purchase Link	Quote request, specs, and company contacts
Datasheet	Installation and wiring instructions, calibration for soils, and specifications

Wiring Diagram

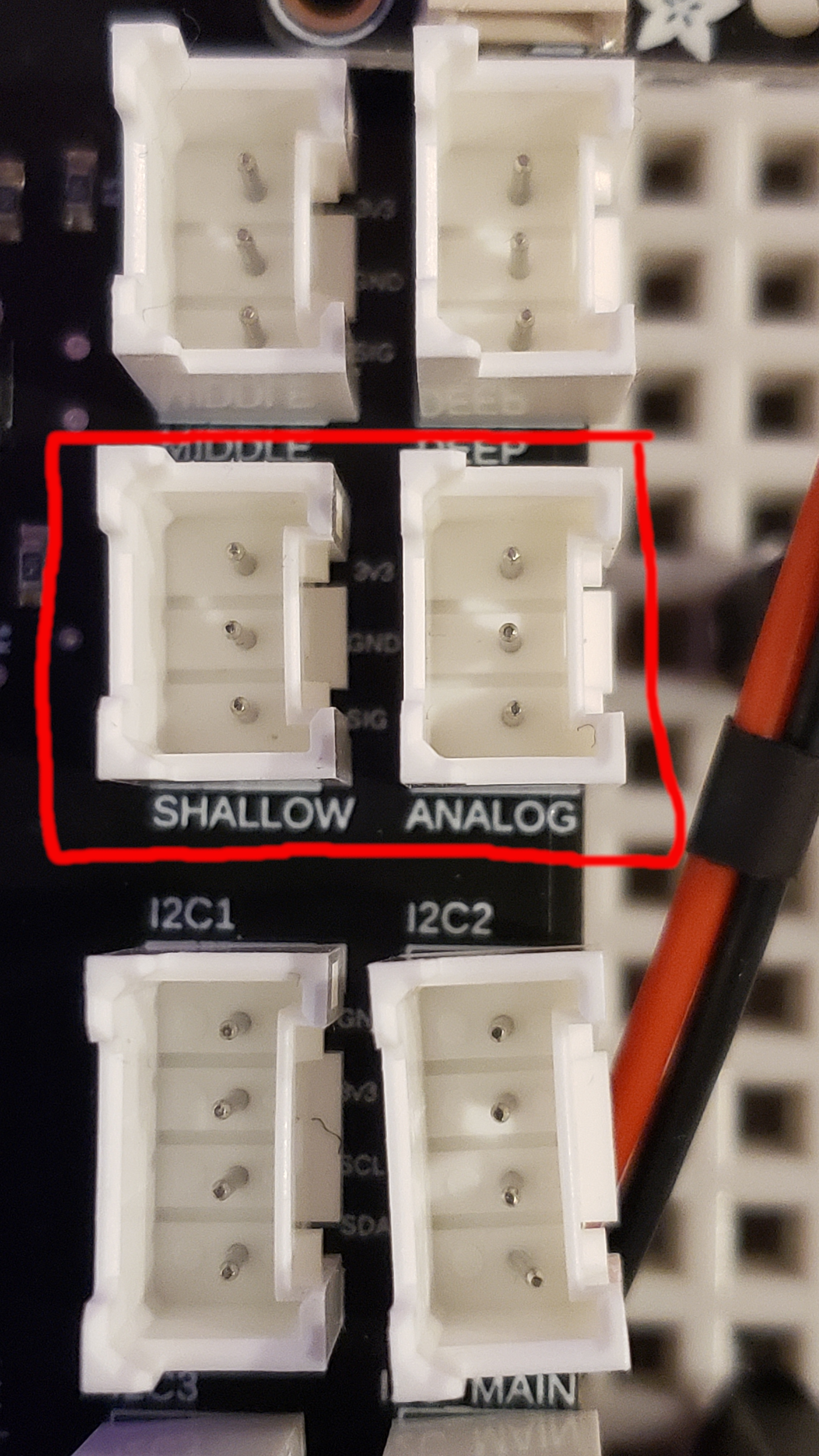

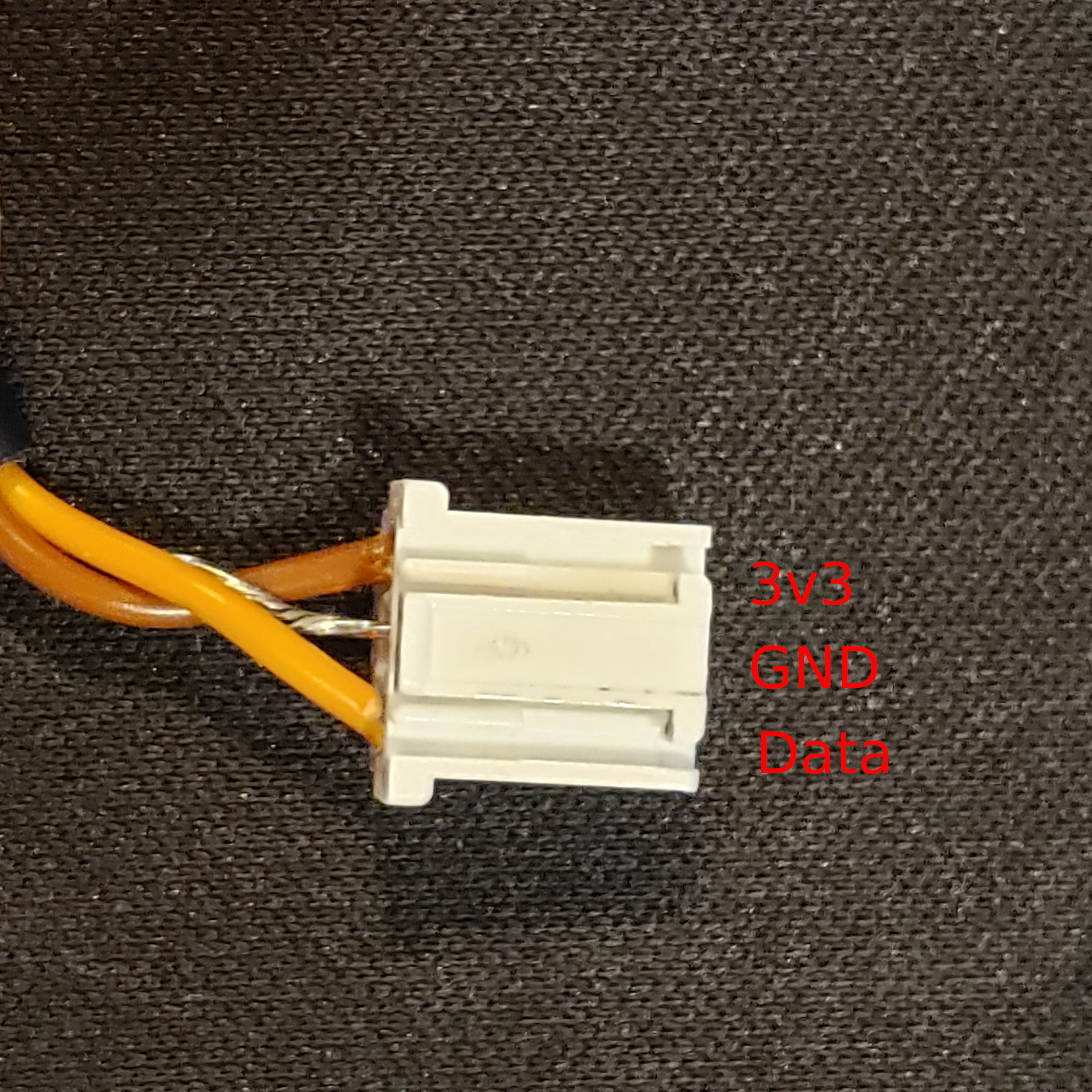

See chart and pictures below for wiring this sensor to the aggregator board. Supported for versions 1.4+.

Connection Chart

| Meter Teros 10 | Aggregator | | :—: | :—: | | Brown(Power) | 3v3 | | Bare(GND) | GND | | Orange(Data) | SIG |
