scheduler.hpp File Reference

Utilities for scheduling tasks and saving persistent data. More...

#include <NimBLEDevice.h>
#include <Adafruit_MAX1704X.h>
#include <OWMAdafruit_ADS1015.h>
#include <ble_util.hpp>
#include <VWCSensor.hpp>
#include <Teros10.hpp>
#include <Atlas_EZO-pH.hpp>
#include <Atlas_Gravity_pH.hpp>

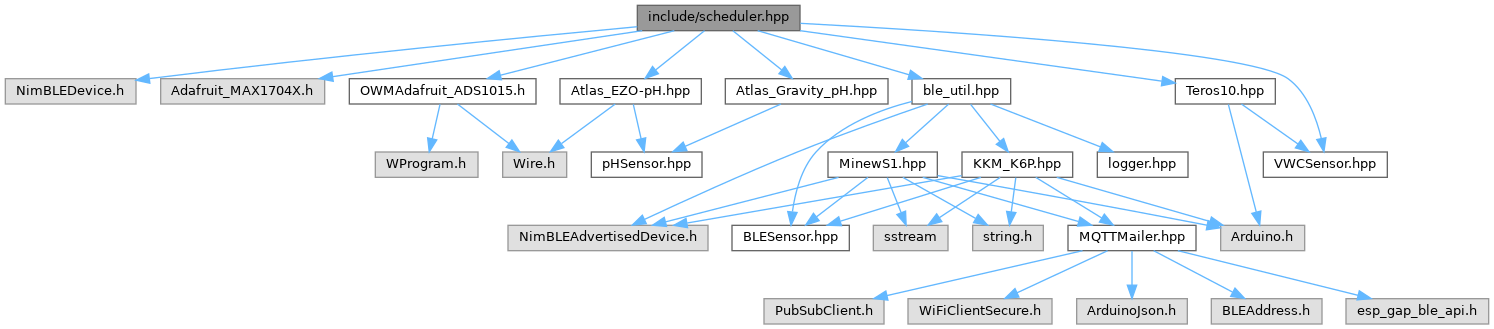

Include dependency graph for scheduler.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	planner
	Data structure for task scheduling stored in NVS. More...

Functions
void	init_nvs ()
	Open NVS, check if it is initialized with data, if not, initialize it.
bool	task_is_scheduled (int reset_count)
	Check if a task will run this time, NVS must be initialized first!
void	ReadHT ()
	Reads temperature and humidity sensors via BLE and then sends complete data to the database.
void	ReadWired ()
	Reads all wired sensors attached to the aggregator.
void	OTAUpdate ()
	Checks and updates from new code published at HTTPS address.
void	PatWDT ()
	Pat the watchdog by raising watchdog done pin high, and then setting it low.
void	SendTLM ()
	Send a telemetry message to the MQTT broker.
void	Scheduler (int reset_count)
	Perform a state transition based on the number of reset counts.
void	SchedulerClearAll (int reset_count)
	Clear all tasks so that none are scheduled to run.

Variables
bool	maxlipo_attached
	Fuel Gauge successfully initialized?
Adafruit_MAX17048	maxlipo
	MAX17048 battery Fuel Gauge.
Adafruit_ADS1115	ads
	Analog to digital converter object (I2C)
int	reset_count = -1
	number of resets retrieved for NVS
struct planner	planner

Detailed Description

Utilities for scheduling tasks and saving persistent data.

Defines the mechanism for implementing task scheduling for sensors, OTA updates, etc. Timing is measured in "ticks". One tick is approximately 64 seconds or the time that the watchdog timer waits before reseting the device and waking it from hibernation. Ticks are tracked between power cycles using the non-volatile storage (NVS) system.

Author

Garrett Wells

Date

2023

Function Documentation

Scheduler()

void Scheduler

(

int

reset_count

)

Perform a state transition based on the number of reset counts.

Parameters

[in]

reset_count

The number of resets that have been performed in this epoch

SchedulerClearAll()

void SchedulerClearAll

(

int

reset_count

)

Clear all tasks so that none are scheduled to run.

Parameters

[in]

reset_count

The number of reset counts to have elapsed.

task_is_scheduled()

bool task_is_scheduled

(

int

reset_count

)

Check if a task will run this time, NVS must be initialized first!

Parameters

[in]

reset_count

The number of resets recorded.

Returns

true if a task is scheduled to run this reboot cycle, false otherwise

Variable Documentation

ads

Adafruit_ADS1115 ads

extern

Analog to digital converter object (I2C)

Interface for the analog to digital converter.

maxlipo

Adafruit_MAX17048 maxlipo

extern

MAX17048 battery Fuel Gauge.

Interface for the battery fuel gauge.

maxlipo_attached

bool maxlipo_attached

extern

Fuel Gauge successfully initialized?

External flag indicating whether maxlipo was initialized successfully.

reset_count

int reset_count = -1

number of resets retrieved for NVS

External variable holding the number of resets recorded by the system. Stored and loaded from non-volatile storage.
