Utilities to facilitate setup of devices and interfaces. More...

#include <scheduler.hpp>
#include <OWMAdafruit_ADS1015.h>
#include <Adafruit_MAX1704X.h>
#include <WiFiClientSecure.h>
#include <WiFi.h>
#include <NimBLEDevice.h>
#include <NimBLEAddress.h>
#include <NimBLEAdvertisedDevice.h>

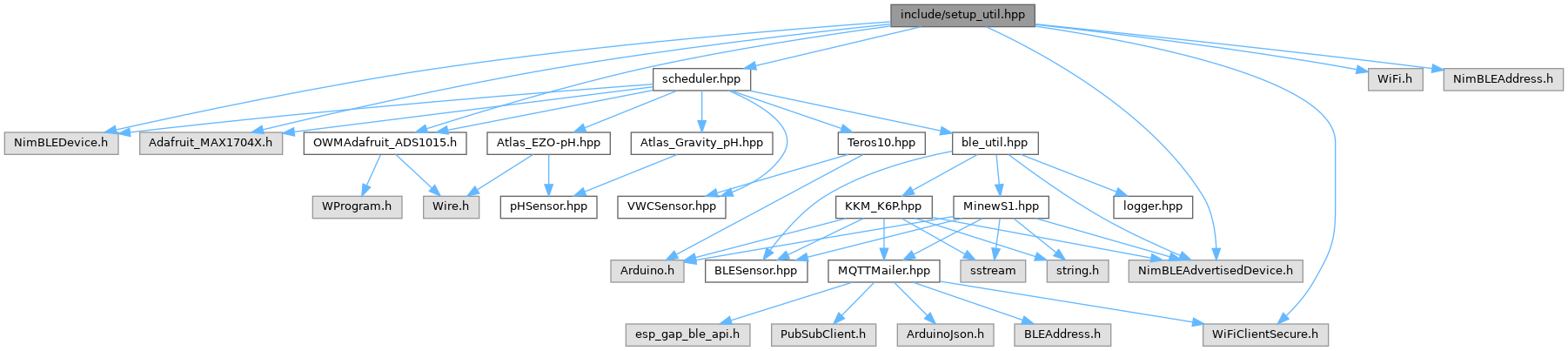

Include dependency graph for setup_util.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	RO_MODE true
	define read only access mode for SD card files

#define	RW_MODE false
	define read/write access mode for SD card files

Functions
NTPClient	timeClient (ntpUDP)
	network time protocol object to get current time

void	setup_gpio ()
	Initialize pins as input/output and set default state (HIGH/LOW)

void	setup_adc ()
	Initialize the analog to digital converter.

void	setup_fuel_gauge ()
	Initialize and set the state variable for the fuel gauge.

void	setup_i2c_sensors ()
	Initialize ALL i2c bus dependent sensors.

void	setup_mqtt_connection ()
	Configure mqtt client settings.

void	setup_ble ()
	Initialize BLE stack.

void	setup_wifi_connection ()
	Connect to WiFi, set flags, timeout, etc.

void	setup_wireless_connections ()
	Setup all wireless interfaces including WiFi, BLE.

void	setup_logging ()
	Initialize logging and get timestamp from network, if available, for logging.

Variables
Adafruit_ADS1115	ads
	Analog to digital converter object (I2C)

Adafruit_MAX17048	maxlipo
	MAX17048 battery Fuel Gauge.

bool	maxlipo_attached = true
	Fuel Gauge successfully initialized?

WiFiUDP	ntpUDP
	WiFi stack object to pass to the NTPClient.

int	reset_count
	number of resets retrieved for NVS

Detailed Description

Utilities to facilitate setup of devices and interfaces.

Author: Garrett Wells

Variable Documentation

◆ ads

Adafruit_ADS1115 ads

Analog to digital converter object (I2C)

Interface for the analog to digital converter.

◆ maxlipo

Adafruit_MAX17048 maxlipo

MAX17048 battery Fuel Gauge.

Interface for the battery fuel gauge.

◆ maxlipo_attached

bool maxlipo_attached = true

Fuel Gauge successfully initialized?

External flag indicating whether maxlipo was initialized successfully.

◆ reset_count

int reset_count

extern

number of resets retrieved for NVS

External variable holding the number of resets recorded by the system. Stored and loaded from non-volatile storage.
